Air Header

Air Header

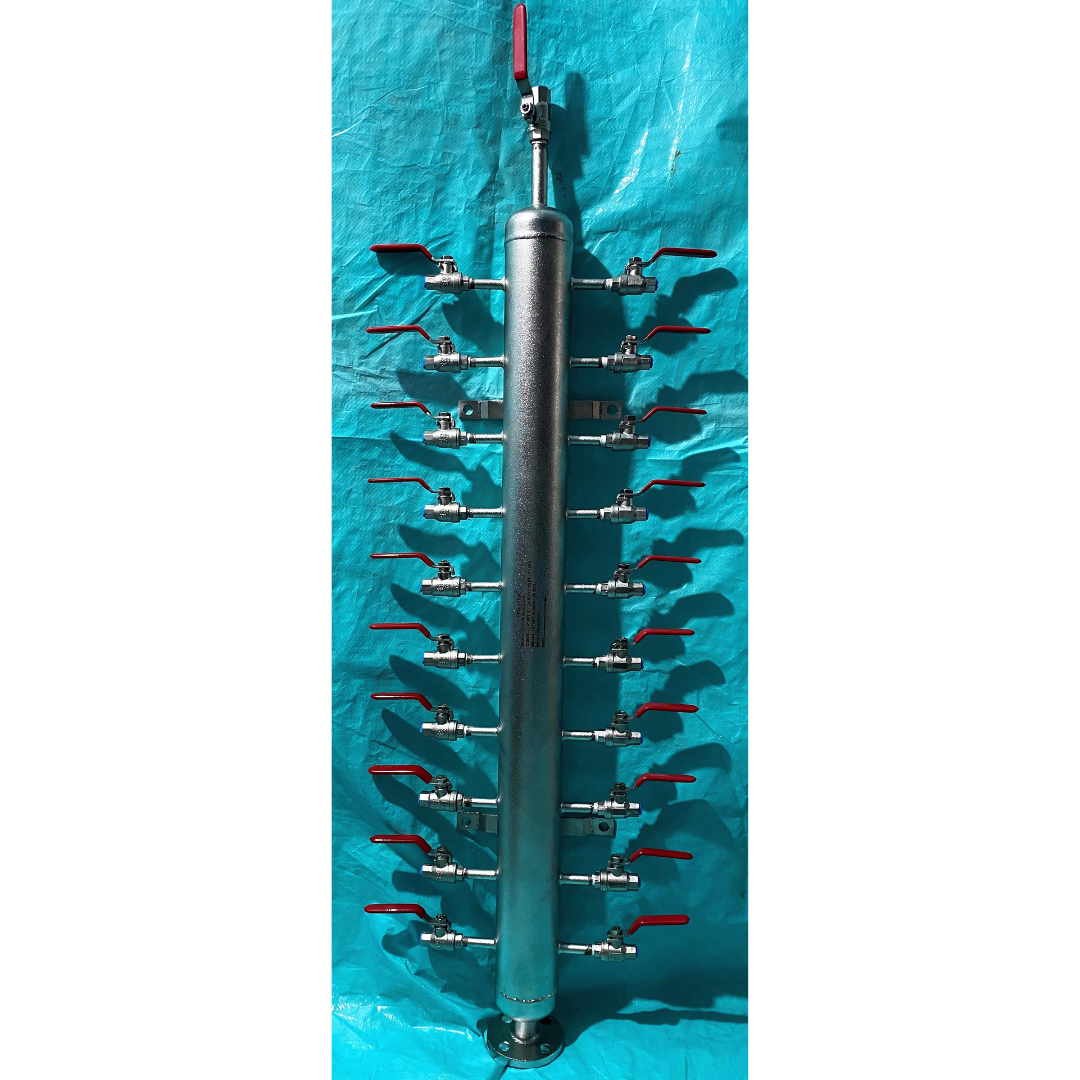

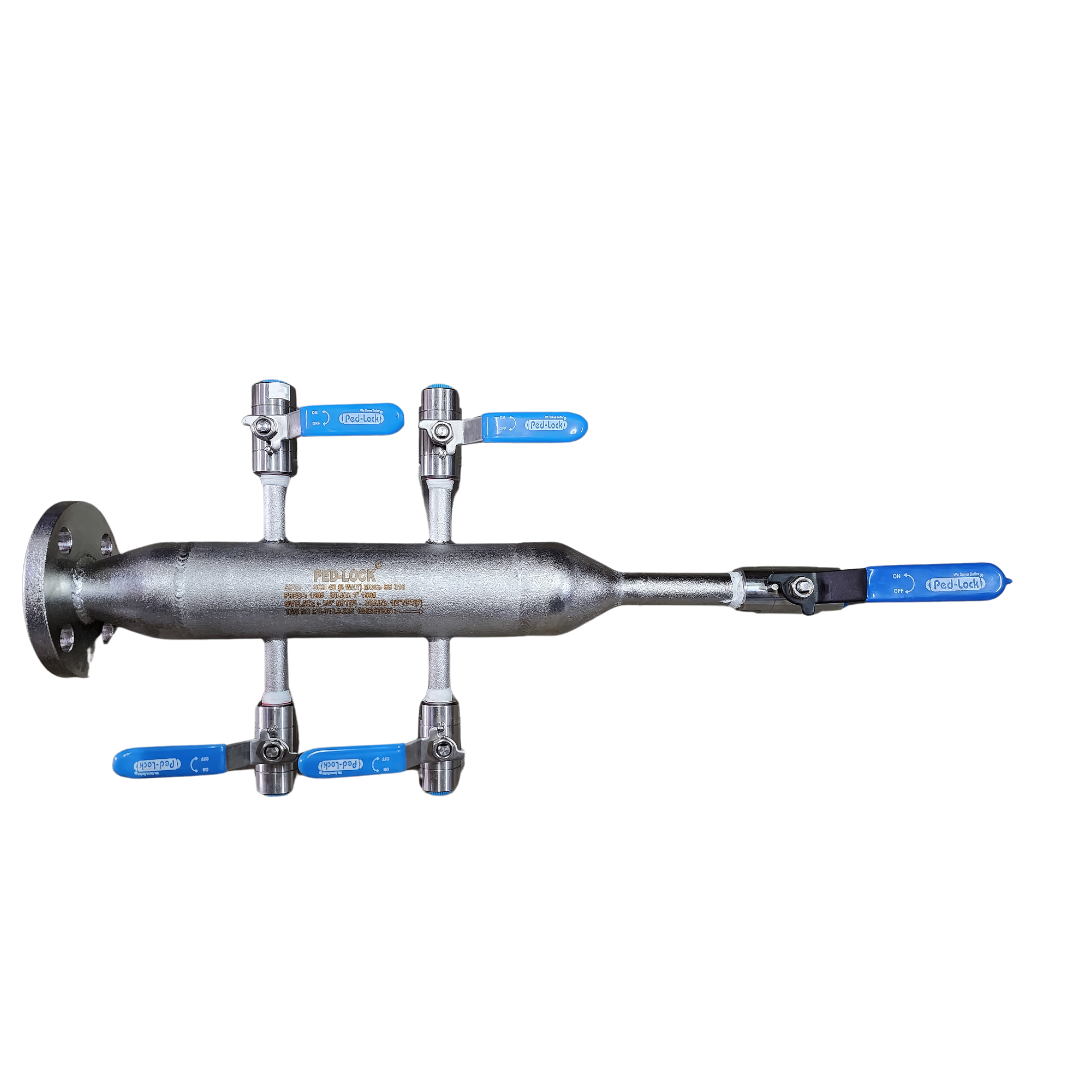

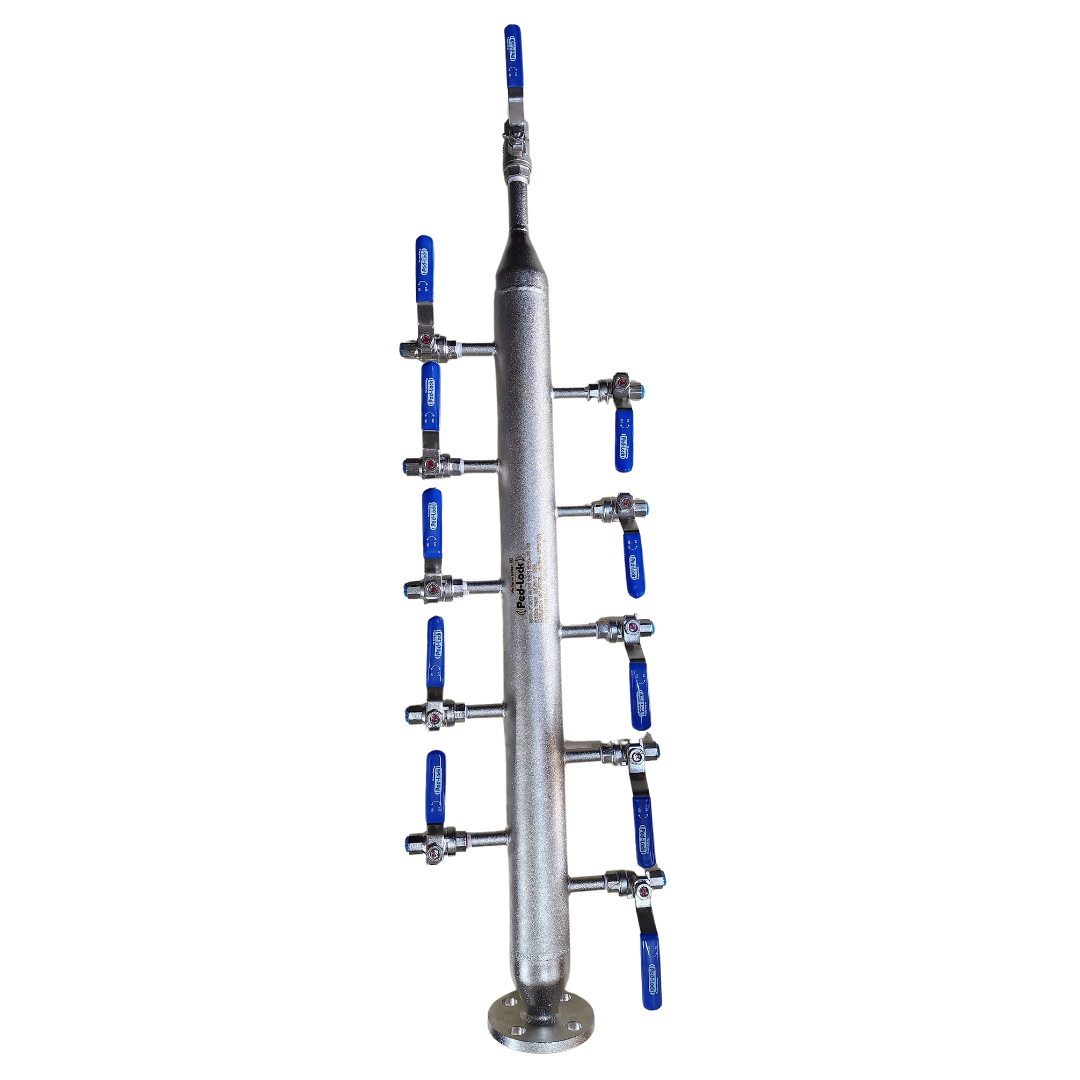

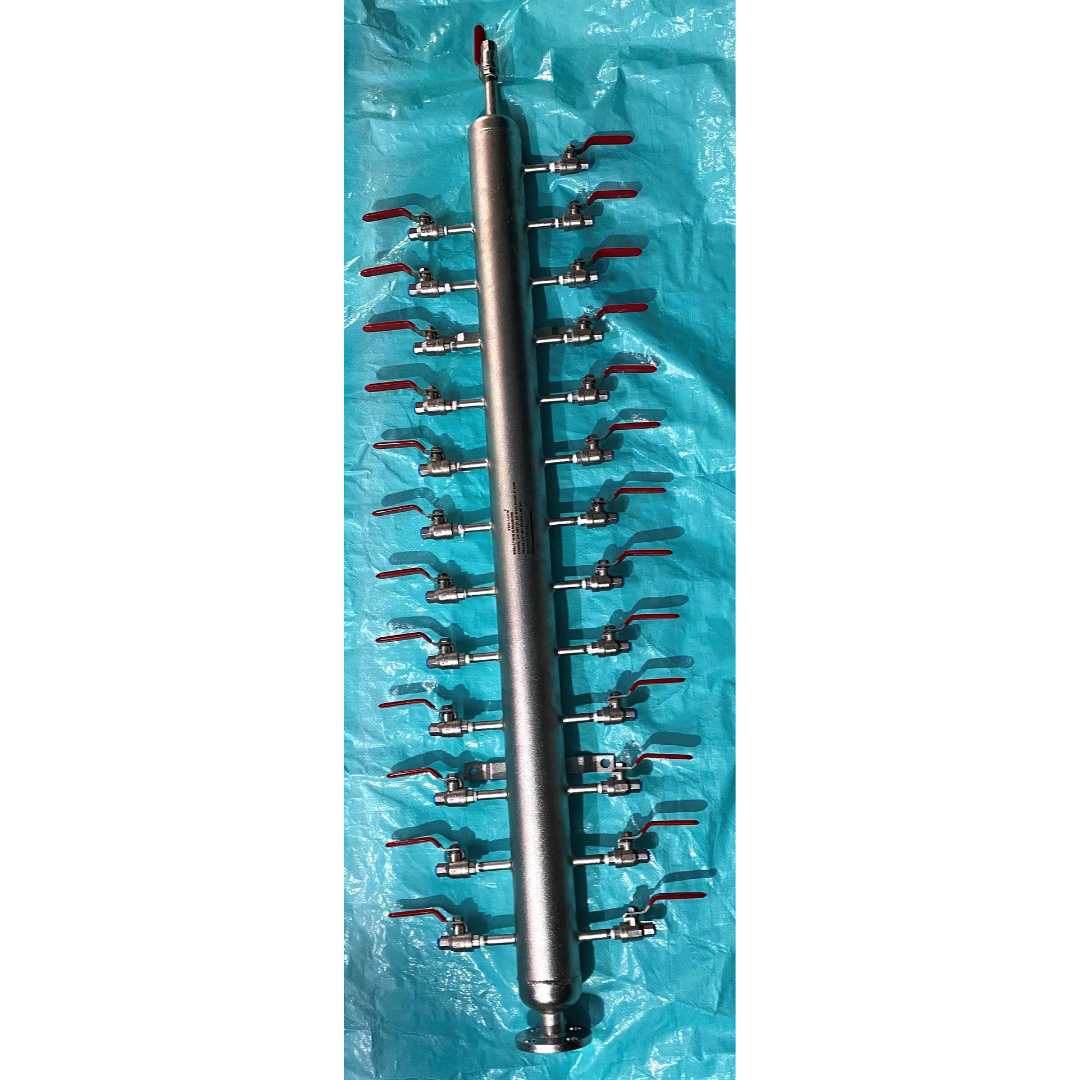

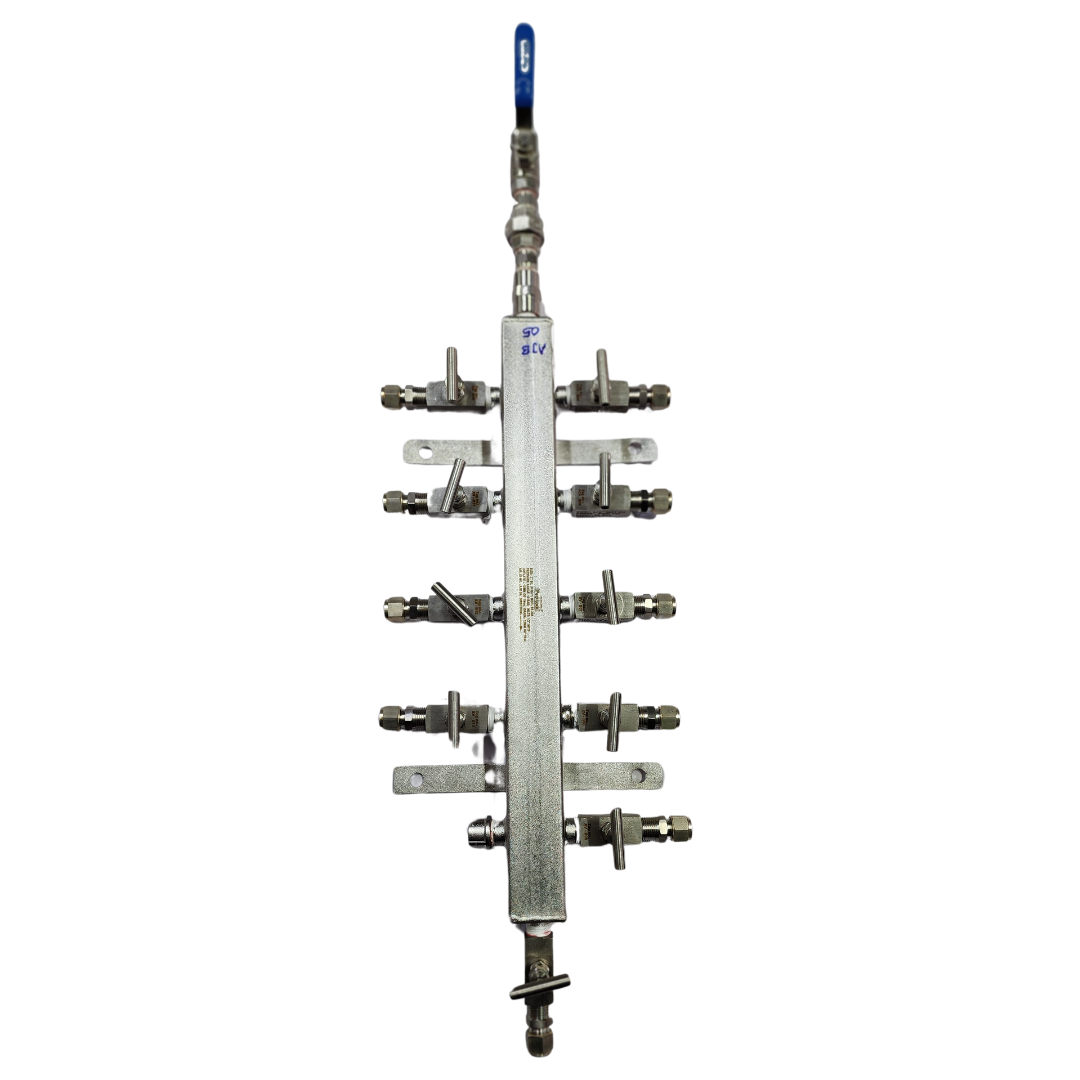

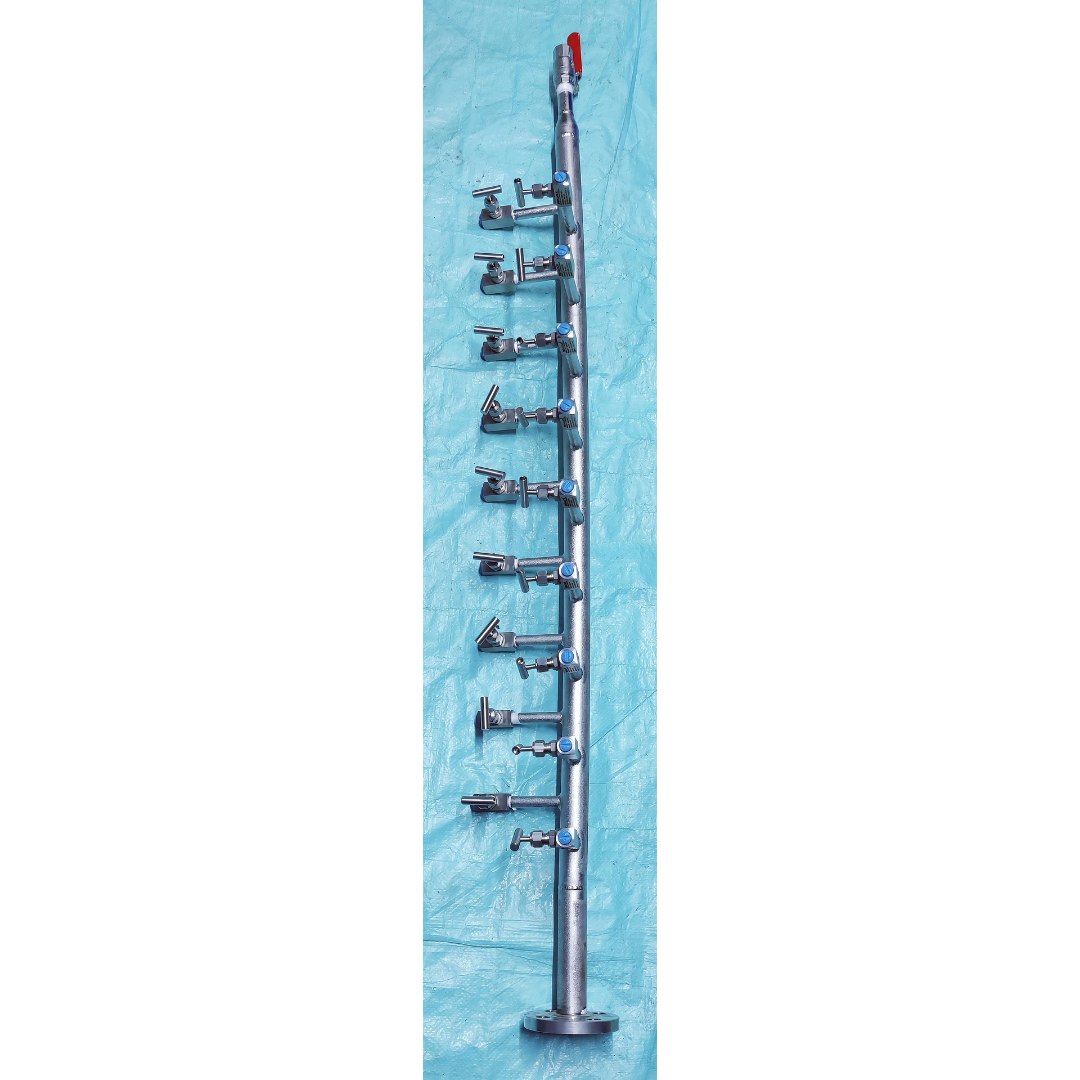

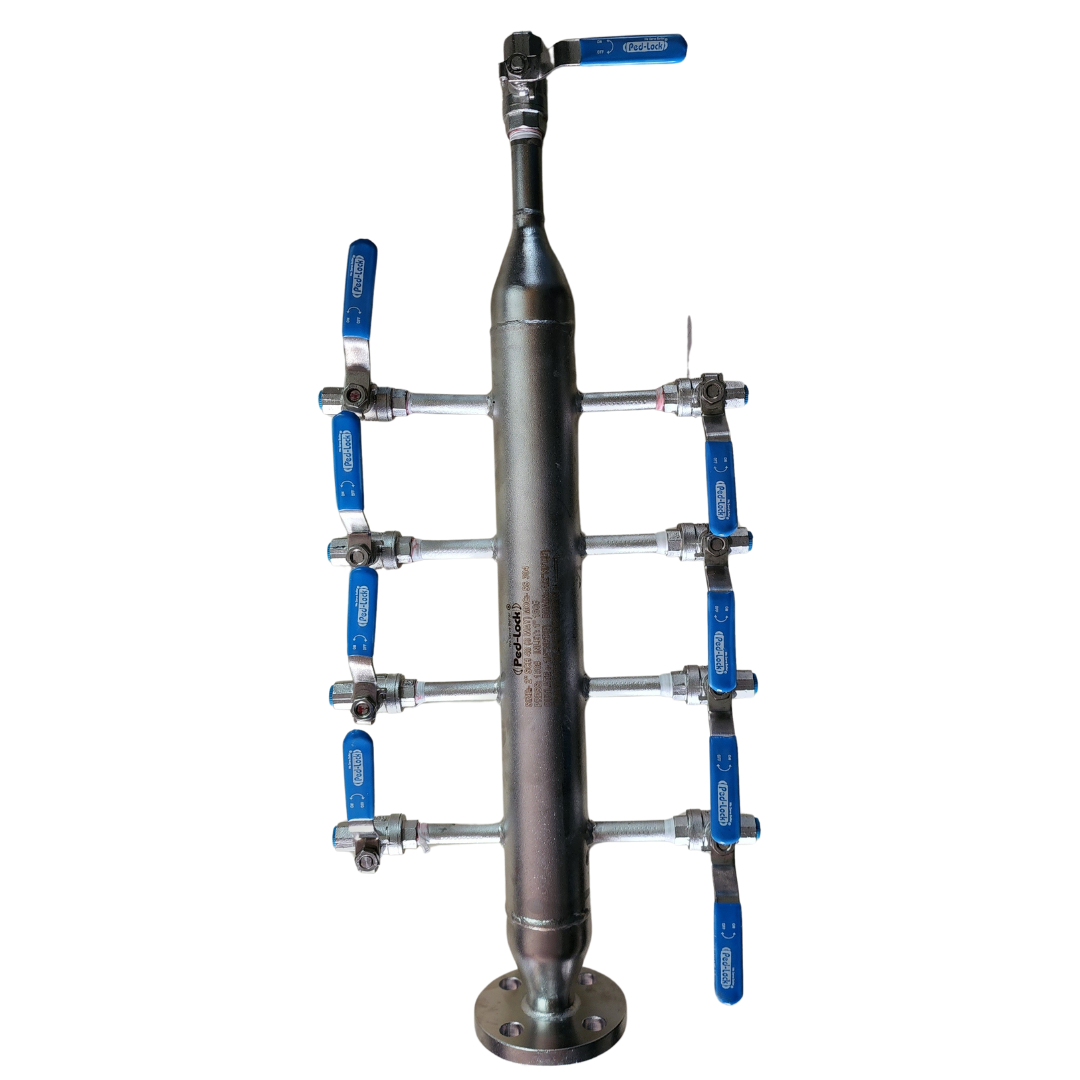

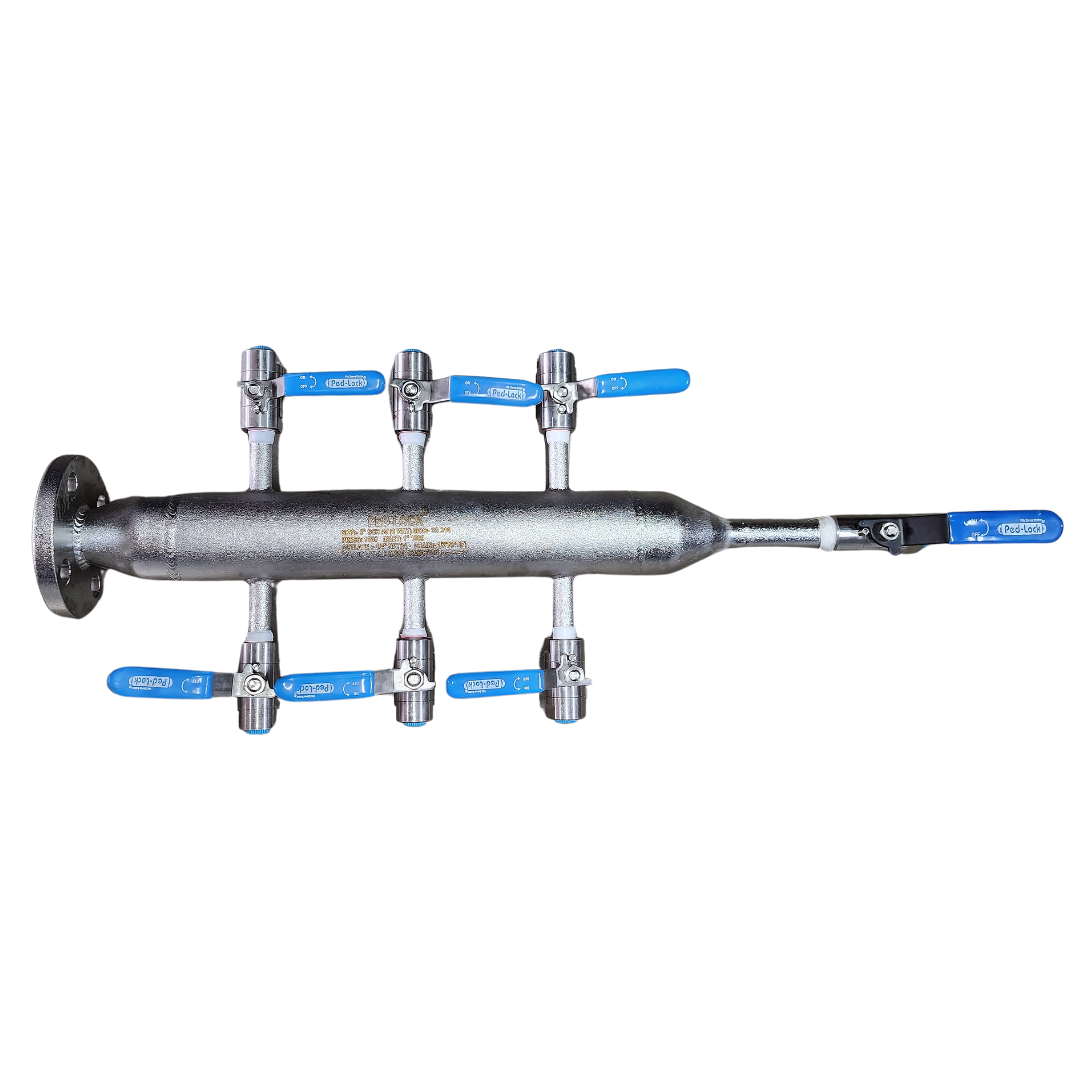

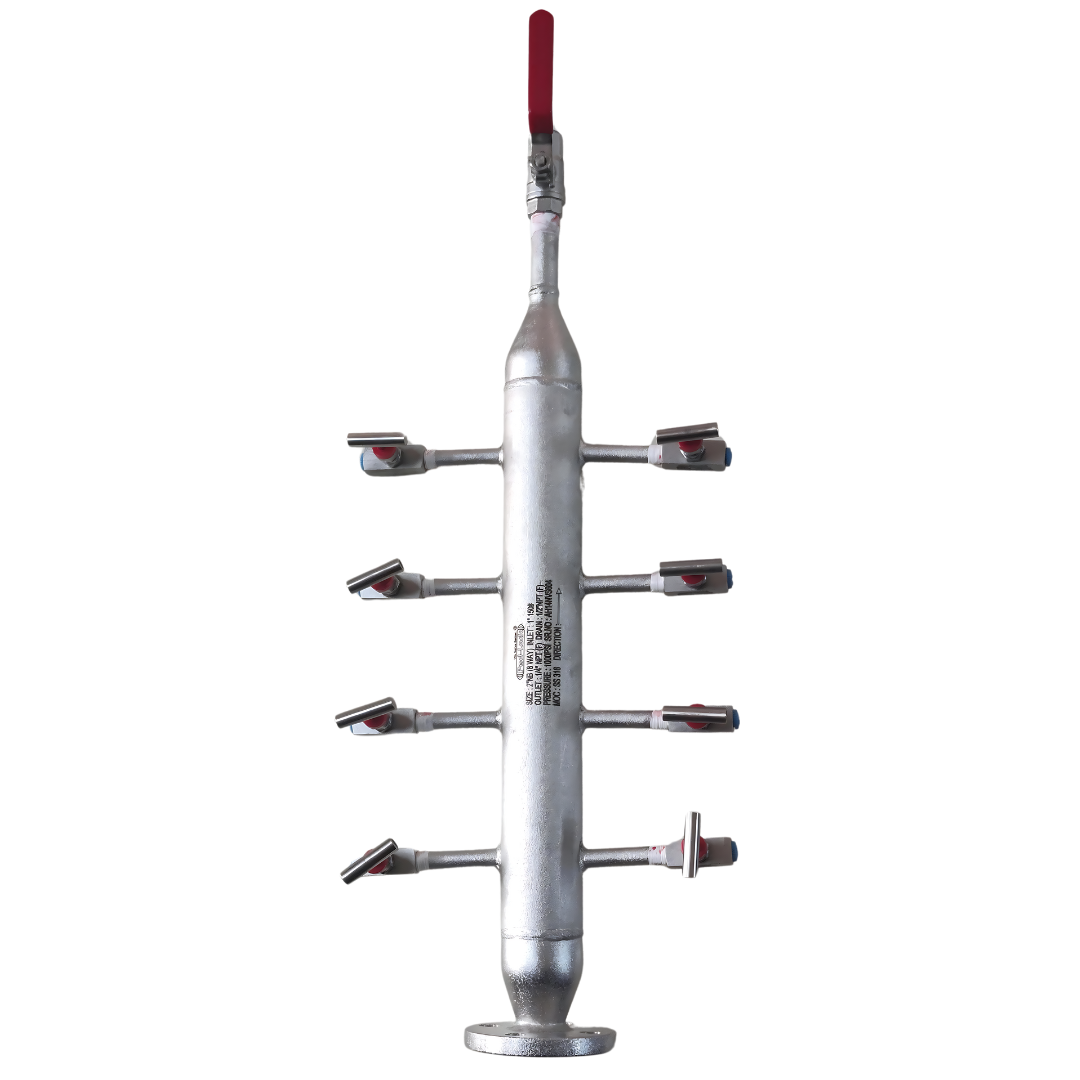

Ped Lock is one of the leading firms for producing and exporting several varieties of Air Headers. We are Air Headers Manufacturer, at our modern production division under expert supervision keeping international standards in mind. Air headers are employed in different trades to control or check the air pressure in transmission tubes. We offer Instrument Air Headers in various dimensions and designs at competitive prices. Air headers have the ability to replace numerous unit valve fabrications that generally operate from one source. They can be aptly used with a range of outlet take-off valves. In this arrangement, the connection of the inlet can be screwable or flange. It is also possible to create a drain valve at the air distribution manifold outlet. For wall mounting use, a ‘U’ shaped clamp will be supplied.
The compact design is the most valuable benefit of the Stainless Steel Air Header made by our organization. We have a prestigious clientele on a national and global level. We’re the leading Air Header Exporter firm in India. we’re more distributing this product to the numerous international clients and also mainly having the huge clients support from many domestic cities by supplying them in wholesale costs as they were easy to use, sturdy structure, attrition resistant, etc and with the safe packaging for the product’s better protection. Some of the major countries where we Export Air Headers include Australia, Saudi, Canada, Brazil, Lagos, Qatar, USA, Oman, Nigeria, Kuwait, and Dubai in addition to several European nations.










Rating | Up to 3,000 psi @ up to 250ºF |
---|---|
Tube Size | 2” 3” 4” 6” |
Outlet Connections | ¼” and ½” BSP/NPT |
Inlet Connections | 1” 150# AND 300# CLASS |
Drain connections | ½” & 1” BSP/NPT |
Valve | Needle valve & Ball valve |
Material : | SS, CS, and other Material Other as Per Your Requirements |
Application
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Testing
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure: 3000 psi (210 bar)
Hydro Tests
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium, seismic are available upon request.
