Double Block & Bleed Valves (DBB Valves)
Engineered for Maximum Safety. Designed for Complete Isolation.
Ped-lock Double Block & Bleed (DBB) Valves are precision-engineered to deliver superior isolation, pressure containment, and safe venting in critical process and instrumentation systems. By integrating two independent isolation valves with a dedicated bleed valve into a single compact assembly, Ped-lock DBB Valves significantly reduce potential leak paths, minimize installation space, and enhance overall system safety and operational efficiency.
Manufactured using premium-grade stainless steel, carbon steel, duplex stainless steel, and high-performance alloys, our DBB valves are designed to withstand the most demanding operating conditions while providing exceptional sealing integrity, corrosion resistance, and long-term reliability. Every valve is precision-machined and rigorously tested to ensure dependable performance in high-pressure and severe-service applications.

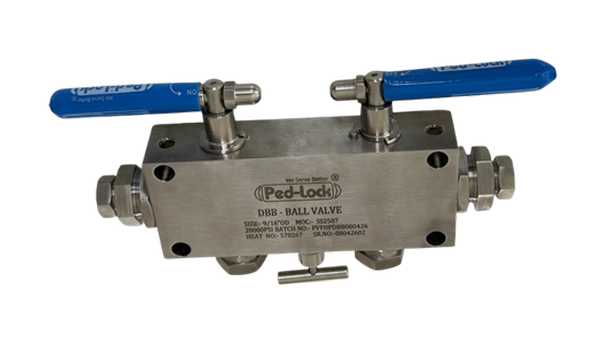

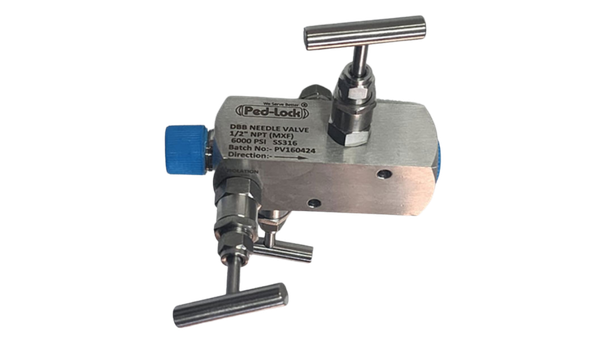

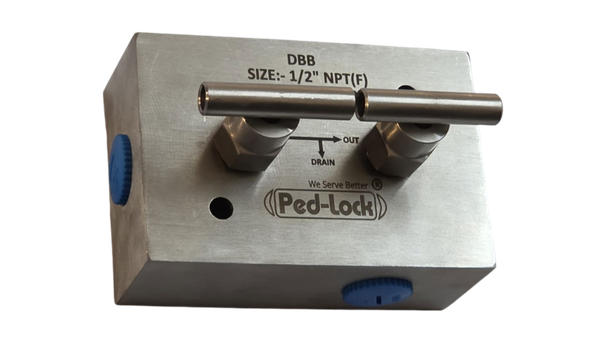

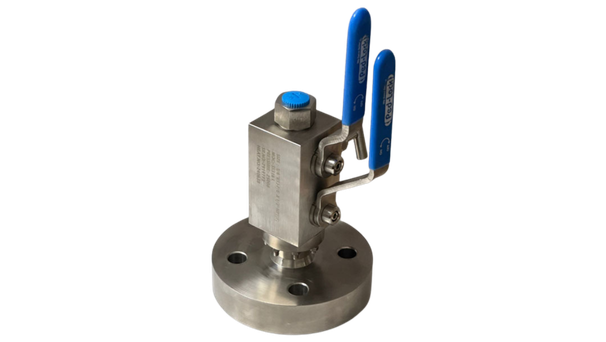

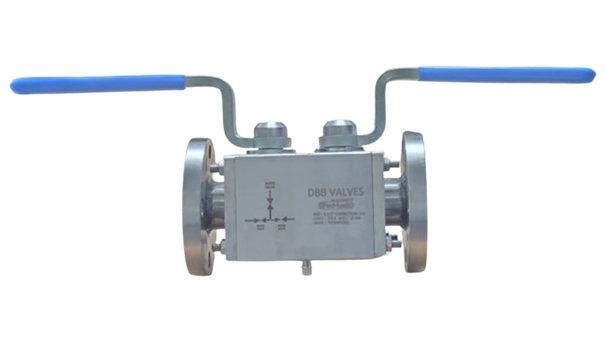

The Ped-lock DBB product portfolio includes Needle Type, Ball Type, Integral Body, Floating Ball, Trunnion Mounted, and Monoflange Double Block & Bleed Valves, offering complete isolation solutions for instrumentation, process control, oil & gas, petrochemical, offshore, LNG, power generation, chemical processing, and other critical industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Range | Needle Type, Ball Type, Integral Body, Floating Ball, Trunnion Mounted & Monoflange DBB Valves |
| Size Range | 1/4" to 2" (Depending on Model) |
| Pressure Rating | Up to ASME Class 2500# / Up to 10,000 PSI (Instrumentation Models) |
| Valve Configuration | Double Block + Single Bleed |
| End Connections | NPT, BSP, Tube End, Socket Weld, Butt Weld & Flanged |
| Body Materials | SS316, SS304, Carbon Steel, Duplex SS, Super Duplex SS & Special Alloys |
| Seat Materials | Metal Seat, PTFE, RPTFE, PEEK & Devlon® |
| Stem Design | Non-Rotating Needle Stem / Blowout-Proof Stem |
| Operation | T-Bar, Lever Operated & Gear Operated |
| Service Media | Oil, Gas, Steam, Water, Hydrogen & Process Fluids |
Applications
- Oil & Gas Production & Processing
- Petrochemical & Chemical Plants
- Offshore & Onshore Installations
- LNG & Cryogenic Facilities
- Refineries
- Power Generation
- Instrumentation & Process Control
- Hydraulic & Pneumatic Systems
- Sampling & Analyzer Systems
- High-Pressure Industrial Processing
Key Features
- Complete double isolation with integrated bleed function
- Compact one-piece design to reduce installation space and leak points
- High-integrity sealing for critical process applications
- Precision-machined components for smooth operation and extended service life
- Bubble-tight shut-off and low fugitive emissions
- Blowout-proof stem and fire-safe design available
- Superior corrosion resistance for aggressive media
- Available in multiple configurations, pressure classes, and connection types
- Suitable for severe-duty, high-pressure, and hazardous service environments
- Custom-engineered solutions to meet project-specific requirements
Why Choose Ped-lock?
Ped-lock is committed to delivering engineered valve solutions that meet the highest standards of quality, safety, and performance. Our Double Block & Bleed Valves are manufactured using advanced CNC machining, premium raw materials, and stringent quality control procedures to ensure exceptional pressure integrity, leak-tight performance, and long-term operational reliability. Trusted by engineers across demanding industries, Ped-lock DBB Valves provide the confidence, durability, and performance required for mission-critical applications where safety and reliability are paramount.
