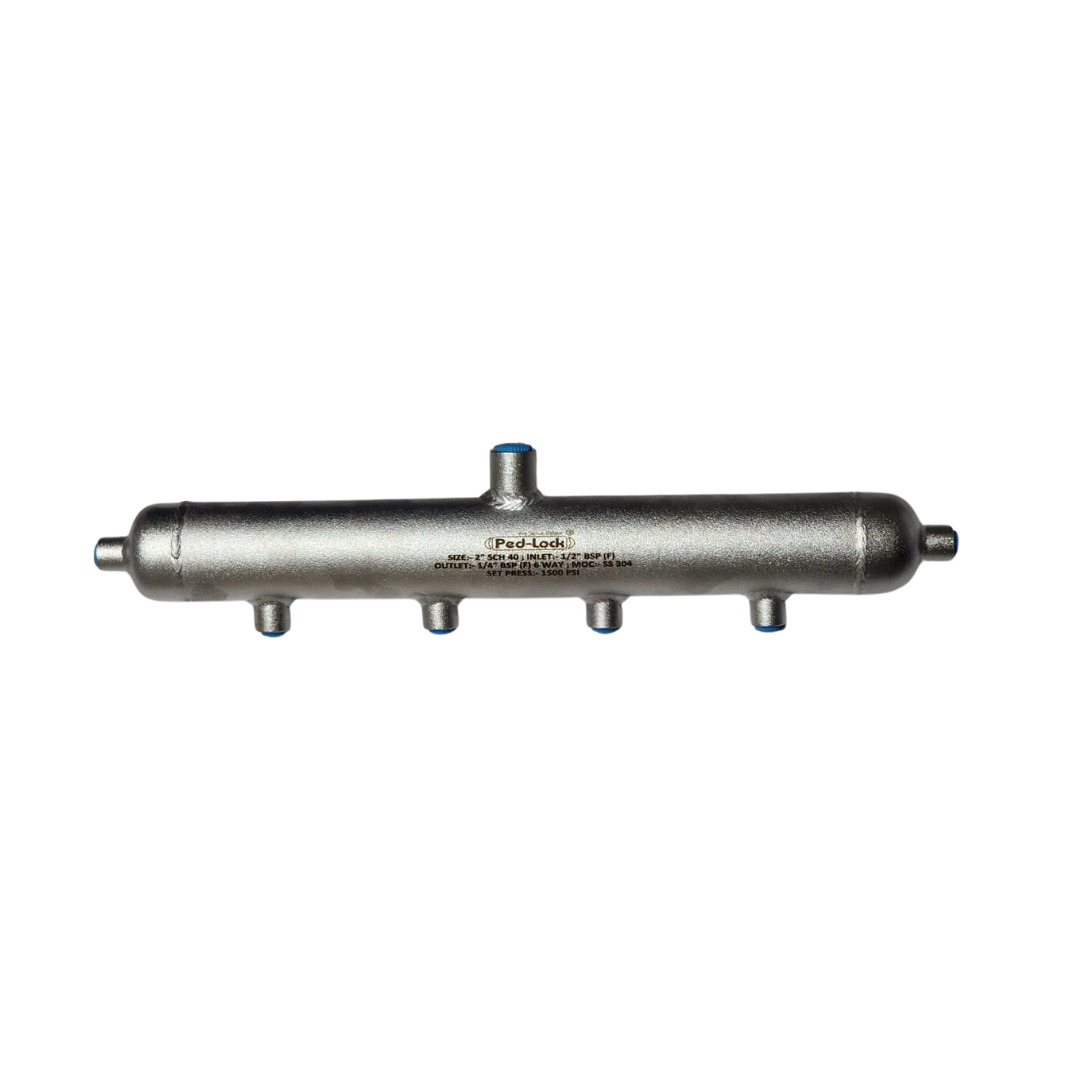

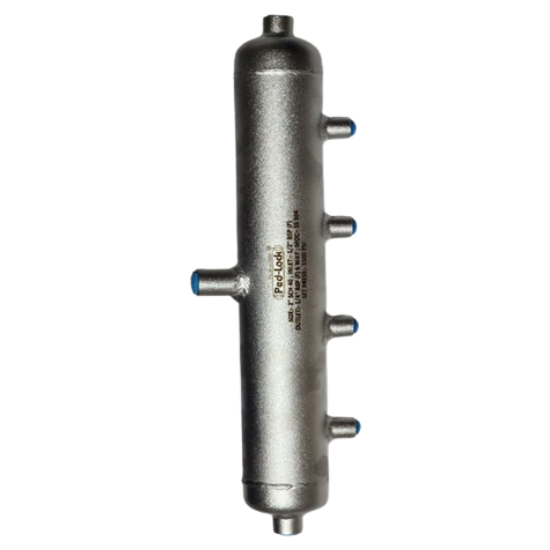

Condensate Pot

Condensate Pot
Ped Lock is known as one of the biggest Condensate Pot manufacturers in India. Condensate Pot are one of our most popular Metal Market goods. Condensate Pot come in a range of sizes, shapes, and dimensions, and they can also be modified to match our customer’s specific requirements. We deliver Condensate Pot in the proper number and with the suitable quality to meet the needs of various industrial sectors.
The prime purpose of a condensate or Seal Pot is to hold foreign material and any liquid resulting from vapor (condensate). This avoids the metering system from being damaged. The condensate pot has a pipe with a 4-inch diameter which is fixed horizontally between the flow meter and gauge. It is employed as a blockade between the chief line and the secondary mechanism to measure steam or any other vapors which may turn into a liquid state in order to ensure compatibility with the secondary apparatus. Being one of the leading Seal Pot Manufacturers, we produce condensate pots in numerous materials like stainless steel, alloy steel, Monel, Hastelloy, and carbon steel. Seal pots are widely employed in processing industries in addition to power plants, steel, refineries, and petrochemical business. We are a renowned Condensate Exporter/Seal Pot Exporter.

Rating | Up to 6,000 psi @ up to 250ºF |
---|---|
Tube Size | 3” 4” 6” |
Outlet Connections | ½” |
Inlet Connections | ½” |
Drain connections | ½” |
Pot connection | ½” |
Material : | SS, CS, and other Material Other as Per Your Requirements |
Application
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Testing
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure: 6000 psi (410 bar)
Hydro Tests
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium, seismic are available upon request.
