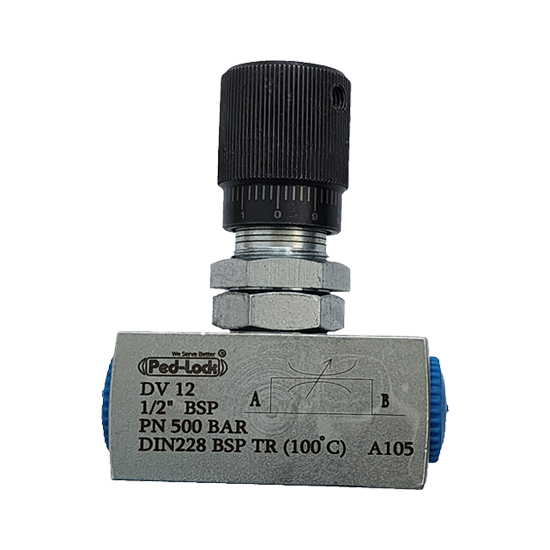

Direction Valve
Direction Valve
We are among the reputed organizations and highly engaged in Direction Valve Manufacturer in India and provide a premium quality range of Direction Valve. Offered control valves are made as per the international quality standards under the surveillance of high-ranking officials. These Direction Control Valves are used to control and regulate fluids and gases at high pressure and flow rate. Our control valves are provided at market-leading rates to customers.
Ped Lock operated Directional Control Valve is a Direct solenoid-operated, spool-type, mounting on ISO 4401-03-02. Five chamber body and spool design provide low-pressure drop, with maximum performance. A balanced spool design ensures proper shifting force for maximum reliability and long life. All spools and bodies are interchangeable, simplifying maintenance. Wet pin DC solenoids ensure better heat dissipation, and quieter operation, thereby increasing solenoid life. Molded solenoid coils eliminate moisture problems and ingress of dust. Plug-in-coils for ease of maintenance. Indicator lights are a standard option.
| Rating: | Up to 7,000 psi @ up to 250ºF |
|---|---|
| Stem & Body Seal: | ‘O-ring (Nitral &Viton) |
| Tube Size: | 1/4” to 3” |
| Connections : | Threaded |
| Body: | Bar Stoke & Forged Steel |
| Pressure Rating: | 500 kg/cm2 |
| Material : | SS, CS, and other Material Other as Per Your Requirements |
Application
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Physical Features
- Pressure rating 500 kg/cm2
Testing
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure: 7000 psi (431 bar)
Hydro Tests
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium, seismic are available upon request.
Key Features
- SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
- Ball hard chrome plated for smooth operation.
