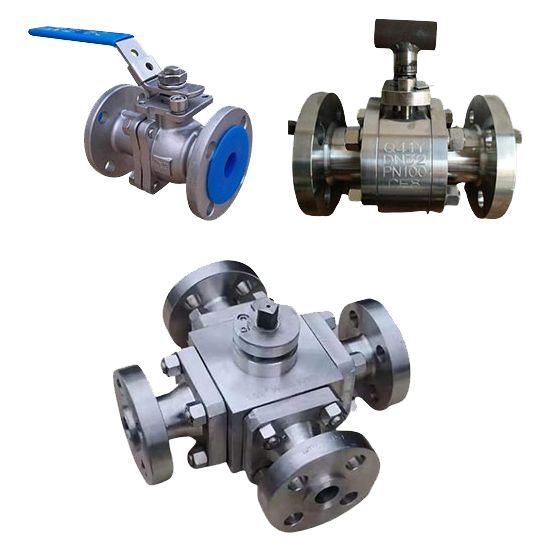

Flange End Ball Valve

Flange End Ball Valve
We are one of the reputed names in the industry in offering a quality assured array of Flanged End Ball Valve Manufacturer to our valuable customers. This Flanged End Ball Valve is made using optimum quality material and advanced technology. The flange end extensively finds applications in chemical industries. These Flange End Ball Valves are appreciated for their high durability and pressure resistance. Available in various sizes and thicknesses, these are designed as per the BS, ANSI DIN standards.
Our professional-quality auditors help us engage in the manufacture and supply of premium-quality Stainless Steel Flange End Ball Valves, which are made using high-quality at our modern manufacturing unit and are available to clients in various lengths and thicknesses. Our Stainless Steel Flanged End Ball Valves have features like Dimensional accuracy, Lightweight, Can withstand at high temperature and pressure applications, Corrosion resistance, Chemically inert, Smooth finish, and more. These SS Flange End Ball Valves are used in various industrial applications and are available in various sizes and materials. We ensure the consistent performance and durability of these SS Flange End Ball Valves. In post-production, we make these SS Flange End Ball Valves by passing a quality check so as to ensure their aptness.

Rating | Up to 1,000 psi @ up to 180ºFx |
---|---|
Stem & Body Seal | ‘O-ring (Nitrile & Viton) |
Seat Packing | PTFE & Peek |
Tube Size | 1/2” to 12” |
Connections | Flanged |
Body | Bar Stoke & Forged Steel and IC |
Pressure Rating | 50 kg/cm2 |
Material | SS, CS and other Material Other as Per Your Requirements |
Application
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Physical Features
- Pressure rating 50 kg/cm2
Testing
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure: 1000 psi (50 bar)
Hydro Tests
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium, seismic are available upon request.
Key Features
- SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. PTFE seat for better performance.
- Ball hard chrome plated for smooth operation.
