High Pressure Check Valves
High Pressure Check Valves for Pressures up to 60,000 PSI

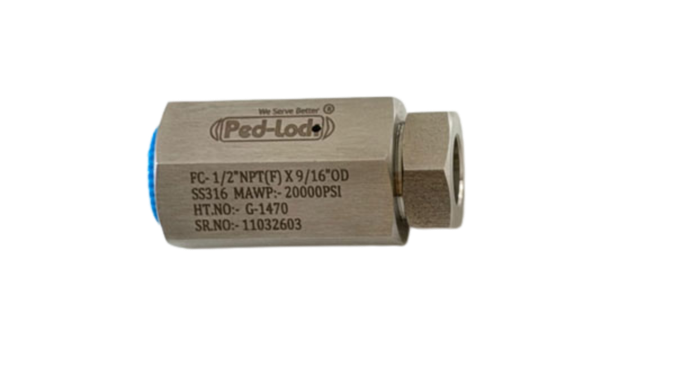

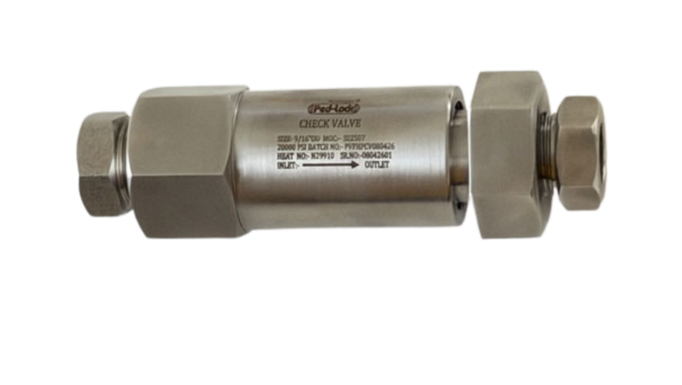

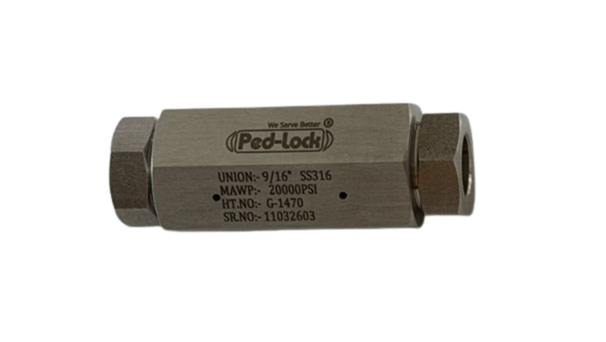

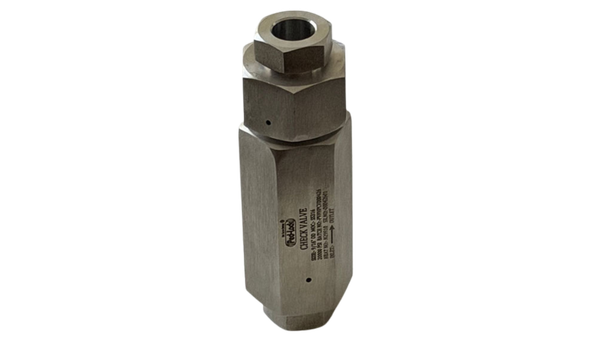

Ped-lock High-Pressure Check Valves are spring-loaded, non-return valves designed to provide reliable one-way flow control in liquid and gas systems operating at pressures up to 60,000 PSI (4,137 Bar). These valves utilize a guided poppet design with replaceable springs to ensure positive sealing and dependable backflow prevention in critical high-pressure applications.
Designed for use with high-pressure cone and thread tubing systems, Ped-lock check valves are manufactured from cold-worked Type 316 stainless steel and are available with multiple cracking pressure options to suit a wide range of service requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Spring-Loaded Check Valve |
| Design | Poppet Type Non-Return Valve |
| Working Pressure | Up to 60,000 PSI (4,137 Bar) |
| Tube Sizes | 1/4", 3/8", 9/16" & 1" |
| End Connections | High-Pressure Cone & Thread, NPT, BSP |
| Body Material | Cold Worked SS316 |
| Internal Components | Hardened Stainless Steel |
| Seat Type | Metal-to-Metal |
| Cracking Pressure | 20 PSI Standard |
| Optional Cracking Pressures | 5 PSI, 10 PSI, 50 PSI, 100 PSI and Custom |
| Temperature Range | -20°F to 450°F (-29°C to 232°C)* |
| Flow Direction | One-Way |
| *Temperature rating depends upon seat and seal material selection. | |
Features
- Spring-loaded guided poppet design
- Positive shut-off and backflow prevention
- Metal-to-metal seating for long service life
- Compact inline construction
- Suitable for liquid and gas service
- Available in multiple cracking pressure settings
- Low-pressure drop characteristics
- High cycle life
- Compatible with cone and thread tubing systems
- Corrosion-resistant stainless-steel construction
Available Pressure Series
Series Maximum Working Pressure
- HP10 10,000 PSI (689 Bar)
- HP20 20,000 PSI (1,379 Bar)
- HP30 30,000 PSI (2,068 Bar)
- HP40 40,000 PSI (2,758 Bar)
- HP60 60,000 PSI (4,137 Bar)
Typical Applications
- Hydraulic Power Units
- Chemical Injection Systems
- Pressure Test Equipment
- Waterjet Systems
- Oil & Gas Instrumentation
- High-Pressure Gas Distribution
- Process Control Systems
- Research Laboratories
- Calibration Equipment
- Offshore & Onshore Installations
Operation
The valve remains closed until inlet pressure exceeds the cracking pressure and system back pressure. When the differential pressure across the poppet exceeds the spring force, the valve opens to permit forward flow. Reverse flow forces the poppet against the seat, providing positive shut-off and preventing backflow.
Why Engineers Choose Ped-lock High-Pressure Check Valves?
Engineered for Ultra-High-Pressure Service
Ped-lock check valves are designed for demanding applications operating at pressures up to 60,000 PSI, ensuring reliable performance in critical fluid and gas systems.
Precision Manufacturing
All valve components are precision machined using advanced CNC equipment to ensure dimensional accuracy, consistent performance, and dependable sealing integrity.
Reliable Sealing Performance
The spring-loaded guided poppet design ensures positive shut-off, minimizes reverse flow, and delivers consistent sealing under high-pressure operating conditions.
Custom Engineering Solutions
Ped-lock offers customized configurations including special materials, cracking pressure settings, end connections, and application-specific designs to meet customer requirements.
Comprehensive Testing & Quality Assurance
Every valve undergoes rigorous inspection and pressure testing to verify performance, pressure integrity, and reliability before dispatch.
Technical Support & Global Supply
Our engineering team provides application assistance, product selection support, and responsive service to customers across India and international markets.
Trusted High-Pressure Valve Manufacturer
With extensive experience in high-pressure instrumentation and fluid handling systems, Ped-lock is committed to delivering reliable products that meet the performance expectations of critical industrial applications.
