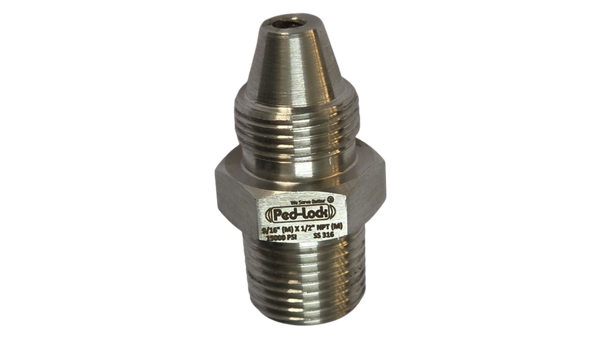

High Pressure Grease Injection Nipples
Ped-lock High-Pressure Grease Injection Nipples are designed for the safe and efficient injection of lubricants, sealants, and specialty compounds into high-pressure systems operating at pressures up to 20,000 PSI (1,379 Bar). Engineered for demanding industrial applications, these fittings provide secure connections, leak-tight sealing, and dependable performance under severe operating conditions.
Manufactured from premium-grade stainless steel and specialty alloys, Ped-lock grease injection nipples offer excellent mechanical strength, corrosion resistance, and long service life. Their robust construction makes them ideal for valve sealant injection systems, hydraulic equipment, wellhead assemblies, offshore installations, and other critical applications where reliable lubrication and sealing are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High-Pressure Grease Injection Nipple |
| Pressure Rating | Up to 20,000 PSI (1,379 Bar) |
| Size Range | 1/8" to 1/2" |
| Connection Type | NPT, BSP, SAE & Custom Threads |
| Material | SS316 (Standard) |
| Optional Materials | SS304, Duplex SS, Super Duplex SS & Special Alloys |
| Design | Ball Check / Spring-Loaded Type |
| Service Media | Grease, Sealants & Lubricants |
| Temperature Range | As per application requirements |
Key Features
- Pressure ratings up to 20,000 PSI
- Secure grease and sealant injection
- Integral check valve design
- Leak-tight performance
- Corrosion-resistant stainless-steel construction
- Compact and rugged design
- Suitable for high-pressure lubrication systems
- Available in multiple thread configurations
- Long service life with minimal maintenance
- Custom designs available upon request
Applications
- Valve Sealant Injection Systems
- Wellhead Equipment
- Hydraulic Systems
- Industrial Lubrication Systems
- Oil & Gas Processing Facilities
- High-Pressure Pumps
- Process Equipment
- Offshore & Onshore Installations
- Pressure Testing Systems
- Heavy Industrial Machinery
Why Engineers Choose Ped-lock?
Ped-lock High-Pressure Grease Injection Nipples are manufactured to deliver reliable performance, secure sealing, and exceptional durability in critical high-pressure applications. Precision machining, premium material selection, and stringent quality control ensure dependable operation and long-term reliability in demanding industrial environments.
