High Pressure Needle Valves
Precision Flow Control for Ultra High-Pressure Applications

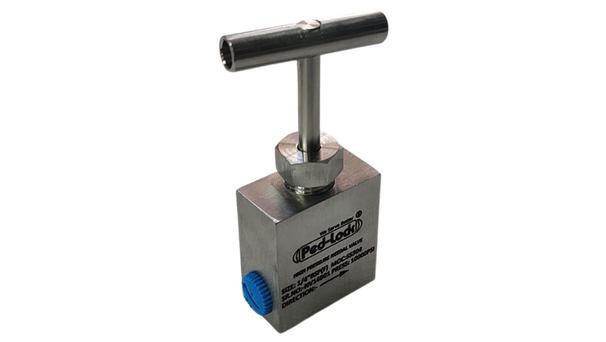

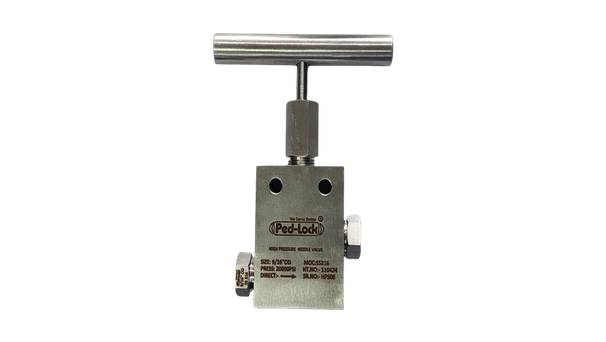

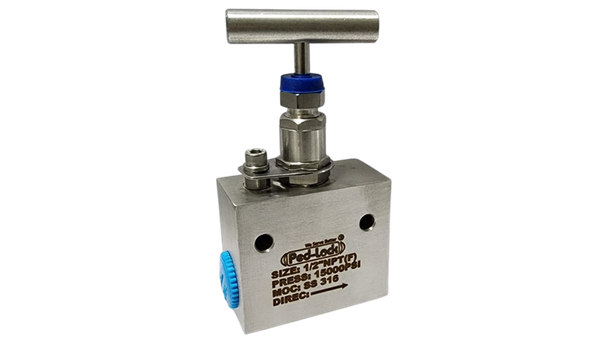

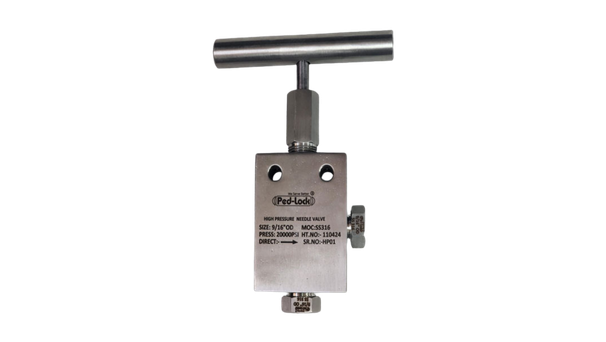

Ped-lock High-Pressure Needle Valves (Autoclave Type) are engineered for precise flow regulation and reliable shut-off in high-pressure instrumentation and process systems. Designed to withstand extreme operating pressures, these valves feature a robust construction, non-rotating stem design, and metal-to-metal seating for exceptional durability, leak-tight performance, and long service life.
Manufactured from premium-grade stainless steel and alloy materials, Ped-lock Autoclave Type Needle Valves are ideal for demanding applications involving gases, liquids, hydraulic fluids, and chemical media. Their compact design and precision-machined components ensure smooth operation and accurate flow control even under severe pressure conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Autoclave Type High-Pressure Needle Valve |
| Size Range | 1/4" to 1” |
| Pressure Rating | Up to 60,000 PSI (4,137 Bar) |
| End Connections | High-Pressure Cone & Thread, NPT, BSP, Tube End |
| Body Material | SS 316, SS 304, Duplex SS & Special Alloys |
| Stem Material | Hardened 17-4 PH Stainless Steel |
| Stem Type | Non-Rotating Stem |
| Seat Design | Metal-to-Metal / Soft Seat |
| Temperature Range | -20°C to +250°C* |
| Operation | Manual / Pneumatic Actuated |
| Flow Pattern | Straight & Angle Pattern |
| Pressure and temperature ratings depend on valve size and material selection. | |
Available Pressure Series
Series Pressure Rating
- HP10 Up to 10,000 PSI
- HP20 Up to 20,000 PSI
- HP30 Up to 30,000 PSI
- HP40 Up to 40,000 PSI
- HP60 Up to 60,000 PSI
Key Features
- Designed for ultra-high-pressure service
- Non-rotating stem minimizes seat wear
- Precision flow regulation and shut-off
- Metal-to-metal seating for enhanced durability
- Bubble-tight sealing performance
- Corrosion-resistant stainless steel construction
- Compact and rugged design
- Low operating torque
- Long service life with minimal maintenance
Applications
Ped-lock High-Pressure Needle Valves are widely used in:
- Oil & Gas Instrumentation Systems
- Hydraulic Power Units
- Chemical Injection Systems
- Test Benches & Pressure Testing Equipment
- Gas Distribution Systems
- Research & Laboratory Applications
- Offshore & Onshore Installations
- Waterjet Cutting Systems
- High-Pressure Process Lines
- Calibration & Instrumentation Panels
Benefits
Accurate Flow Control
Provides precise throttling and flow regulation in critical high-pressure applications.
Reliable Shut-Off Performance
Ensures secure isolation and leak-tight sealing under extreme pressure conditions.
Enhanced System Safety
Protects high-pressure systems through dependable operation and robust construction.
Reduced Maintenance
Premium materials and precision engineering extend service life and reduce downtime.
High Corrosion Resistance
Suitable for harsh industrial environments and aggressive media.
Why Choose Ped-lock?
- Expertise in high-pressure instrumentation valves
- ISO-certified manufacturing processes
- Precision CNC-machined components
- Custom configurations available
- Stringent quality inspection and pressure testing
- Competitive pricing and global supply capability
- Technical support for application-specific requirements
Trusted Manufacturer of High-Pressure Needle Valves in India
Ped-lock delivers dependable high-pressure needle valves designed to provide safe operation, precise flow control, and exceptional durability in the most demanding industrial environments. Our commitment to quality, engineering excellence, and customer satisfaction makes us a preferred partner for high-pressure fluid handling solutions worldwide.
