High Pressure Trunnion Ball Valves
Positive Shut-Off Performance for Critical High-Pressure Systems
Ped-lock Trunnion Style High-Pressure Ball Valves are engineered to provide reliable quarter-turn isolation in demanding liquid and gas applications. Designed for operating pressures up to 20,000 PSI (1,379 Bar), these valves feature a trunnion-mounted ball design that minimizes operating torque, reduces seat wear, and ensures dependable sealing performance under high-pressure conditions.
Available in both 2-Way and 3-Way configurations, these valves are ideal for hydraulic systems, gas distribution networks, chemical injection skids, pressure testing equipment, and process control applications where safety, reliability, and performance are critical.
Available Configurations

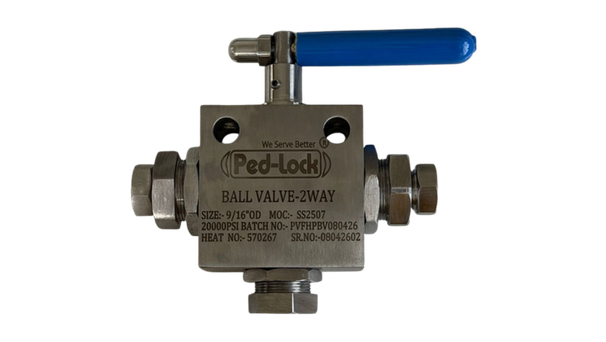

2-Way Trunnion Ball Valves
Designed for positive shut-off service with simple quarter-turn operation. The trunnion-supported ball provides enhanced sealing integrity and smooth operation, even under extreme pressure conditions.
3-Way Trunnion Ball Valves
Available in both 180° Switching and 90° Diverter configurations, allowing operators to divert, isolate, or alternate flow paths within high-pressure systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Trunnion Style High-Pressure Ball Valve |
| Configuration | 2-Way & 3-Way |
| Pressure Rating | Up to 20,000 PSI (1,379 Bar) |
| Size Range | 1/4" to 1" |
| Orifice Sizes | 0.187", 0.375", 0.500", 1.000" |
| Body Material | SS316, Duplex SS & Special Alloys |
| Seat Material | PEEK (Standard) |
| O-Ring Material | Viton® (Standard) |
| End Connections | High-Pressure Cone & Thread, NPT, BSP, Tube End |
| Operation | Manual Lever |
| Service Media | Liquids & Gases |
| Temperature Rating | Up to 204°C (400°F) |
Key Features
- Trunnion-mounted ball design for reduced operating torque
- Pressure ratings up to 20,000 PSI
- Quarter-turn shut-off operation
- Available in 2-way and 3-way configurations
- 90° diverter and 180° switching options
- Multiple orifice sizes available
- PEEK seats for superior wear resistance
- Viton® O-ring sealing system
- Corrosion-resistant stainless-steel construction
- Suitable for severe-duty liquid and gas service
- Long service life with minimal maintenance
Applications
- Hydraulic Power Systems
- Chemical Injection Packages
- High-Pressure Gas Systems
- Oil & Gas Processing
- Pressure Test Benches
- Waterjet Equipment
- Research & Development Facilities
- Process Control Systems
- Petrochemical Plants
- Offshore & Onshore Installations
Why Engineers Choose Ped-lock Trunnion Ball Valves?
Ped-lock Trunnion Style Ball Valves are designed for applications where conventional ball valves may not provide adequate sealing performance under extreme pressures. The trunnion-supported design ensures consistent shut-off, reduced operating effort, and extended service life, making these valves a preferred choice for critical high-pressure isolation and flow diversion applications worldwide.
