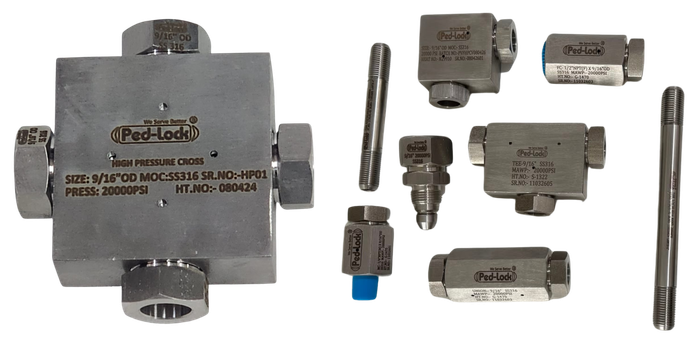

Hydrogen Tubing Fittings
Ped-lock Hydrogen Tubing Fittings are designed for secure, leak-tight connections in ultra-high-pressure fluid and gas systems operating at pressures up to 60,000 PSI (4,137 Bar). Manufactured to meet the demanding requirements of high-pressure process, testing, and instrumentation applications, these fittings provide exceptional strength, reliability, and corrosion resistance.
Compatible with high-pressure cone and thread tubing systems, Ped-lock fittings are precision machined from premium stainless steel and are available in a wide range of configurations to suit complex piping and tubing installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Hydrogen Tubing Fittings |
| Design Standard | Autoclave Type |
| Pressure Rating | Up to 60,000 PSI (4,137 Bar) |
| Tube Sizes | 1/4", 3/8", 9/16", 1" |
| Connection Type | High-Pressure Cone & Thread |
| Material | Cold Worked SS316 |
| Optional Materials | Duplex SS, Super Duplex SS, Inconel & Special Alloys |
| Service Media | Liquids & Gases |
| Temperature Range | As per material and application |
Available Configurations
- High-Pressure Tees
- Elbows
- Crosses
- Couplings
- Unions
- Male Connectors
- Female Connectors
- Reducers
- Adapters
- Bulkhead Fittings
Key Features
- Pressure ratings up to 60,000 PSI
- Designed for cone and thread tubing systems
- Leak-tight metal-to-metal sealing
- Precision-machined threads and seating surfaces
- High mechanical strength and pressure integrity
- Corrosion-resistant construction
- Compact and robust design
- Suitable for severe-duty service
- Easy installation and maintenance
- Long service life in demanding environments
