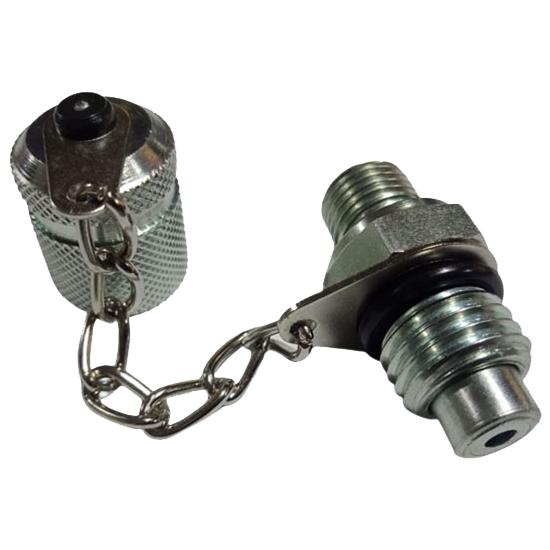

Minimize / Test Coupling

Minimize / Test Coupling
Ped Lock is one of the leading Manufacturer and Supplier of Minimize Test couplings. We provide superior quality Minimize Coupling made according to Indian and international standards and specifications at offer premium Quality to all our clients at a competitive and reasonable price. These Minimize Hoses come in designs without any valves. Moreover, less energy gets consumed with these assemblies and less maintenance is required. The major use of these assemblies is in operations pertaining to dis-assembly and re-assembly. Available at reasonable prices, these assemblies are the first choice of our customers. These are high-pressure coupling used for test lines’ Working pressure.
Minimes Test Coupling is used to observe the pressure of the system, vent pressure, or draw samples from systems without affecting the working of the system whether it’s for testing, measuring, or switching. Every Minimess Test Coupling we sell is sturdy, reliable, and will endure years of use or disuse. Minimes Test coupling is resistant to corrosion and chemical abrasion.

Rating: | Up to 7,000 psi @ up to 250ºF |
---|---|
Stem & Body Seal: | ‘O-ring (Nitral &Viton) |
Tube Size: | 1/4” to 1/2” |
Connections : | Threaded |
Body: | Bar Stoke & Forged Steel |
Pressure Rating: | 500 kg/cm2 |
Material : | SS, CS, and other Material Other as Per Your Requirements |
Application
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Physical Features
- Pressure rating 500 kg/cm2
Testing
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure: 7000 psi (500 bar)
Hydro Tests
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium, seismic are available upon request.
Key Features
- SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
- Ball hard chrome plated for smooth operation.
