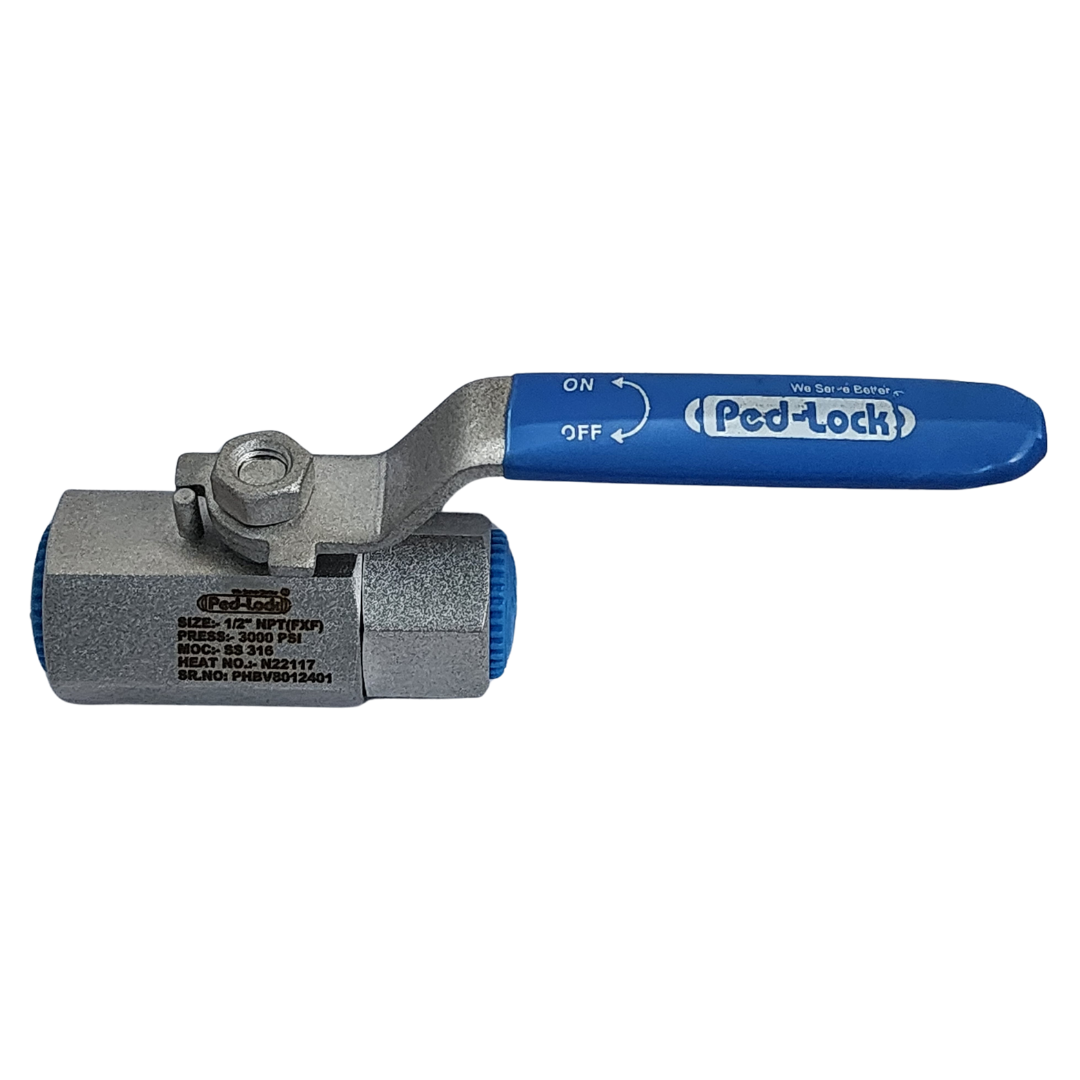

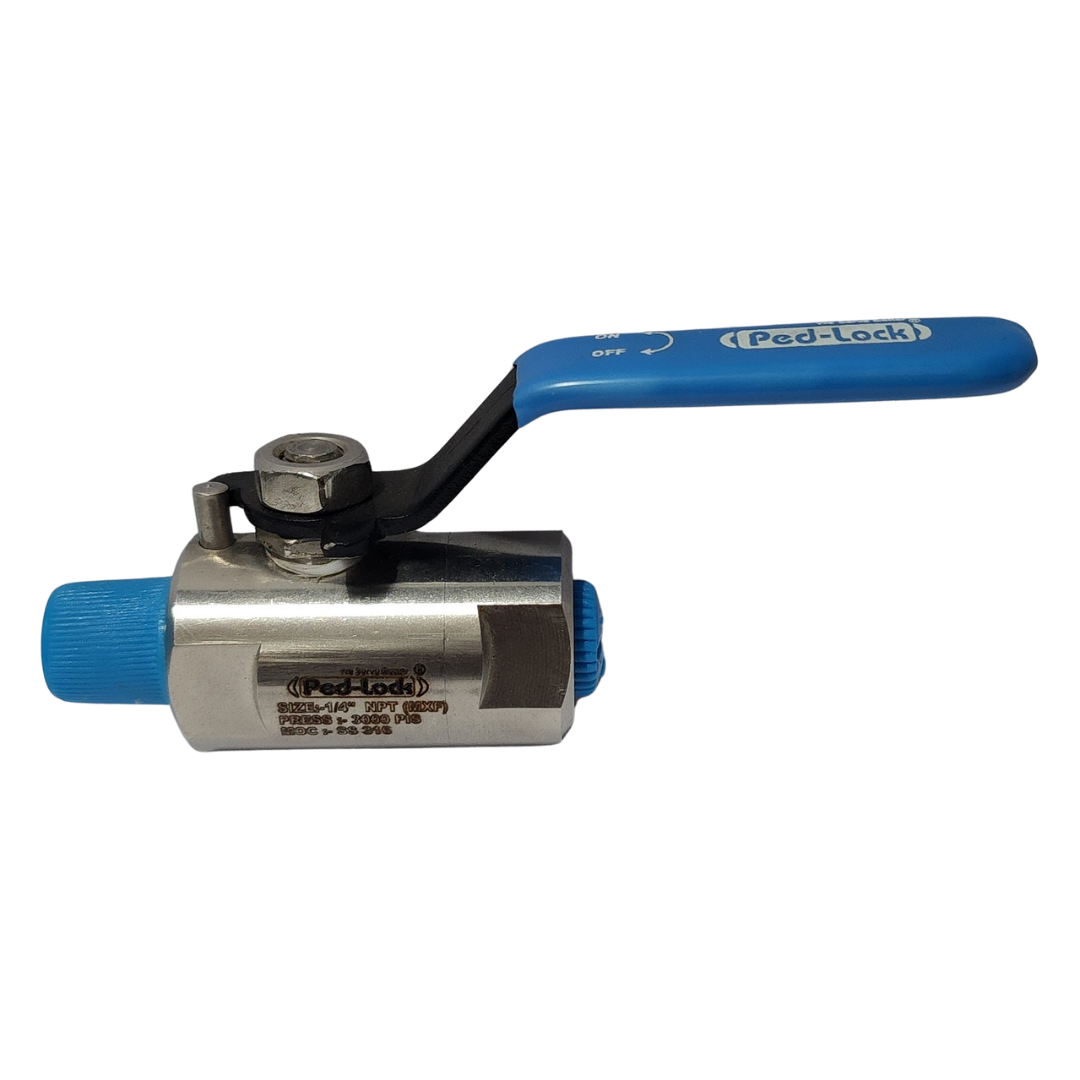

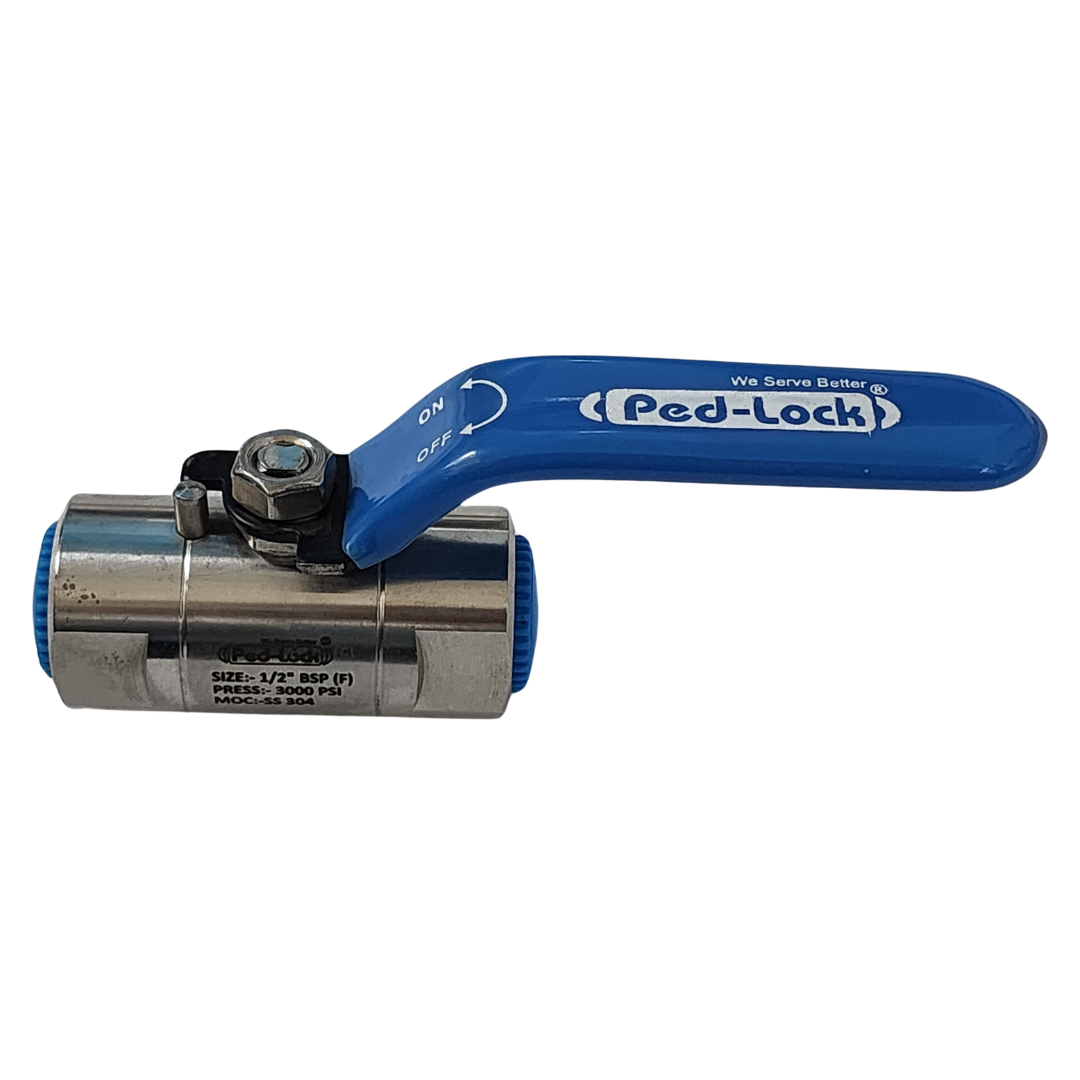

Round Body Ball Valve 1500 PSI to 3000 PSI
Round Body Ball Valve 1500 PSI to 3000 PSI
Ped Lock is the renowned OD Type Panel Mounting Ball Valve. OD Type Ball Valve In this design steam and ball work as a single unit. The ball is supported by two floating or spring-loaded seats that remain in constant contact with the ball. Trunnion ball design required a lower operating torque. Hence, reduces the size of the actuator and the overall costs of the Panel Mounting Ball Valve.
We are an eminent manufacturer and supplier of a comprehensive spectrum of OD Type Ball Valve to our respected clients. These fittings are made out of grade-A raw material that was acquired from trusted sources in the market. And, we also use advanced technology machinery to shape and design these products with the help of skilled fabricators. These offered OD Type Panel Mounting 2 Way Ball Valves find their use in a number of industrial and domestic applications. Moreover, customers are provided these fittings by us in varied specifications at most nominal prices.
| Rating | Up to 3,000 psi @ up to 600ºF |
|---|---|
| Stem & Body Seal | ‘O’ring (Nitral & Viton) |
| Seat Packing | POM & Peek |
| Tube Size | 1/4” to 2” |
| Connections | Threaded |
| Body | Bar Stoke & Forged Steel |
| Pressure Rating | 210 kg/cm2 |
| Material | SS, CS, and other Material Other as Per Your Requirements |
Application
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Physical Features
- Pressure rating 210 kg/cm2
Testing
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure : 3000 psi (210 bar)
Hydro Tests
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium, seismic are available upon request.
Key Features
- SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
- Ball hard chrome plated for smooth operation.
